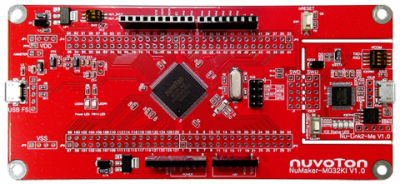

NuMaker-M032KI

The NuMaker-M032KI development board consists of two parts, a M032KIAAE platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M032KI allows users to quickly develop and easily program and debug application.

The NuMaker-M032KI offers M032KIAAE full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M032KI also provides an ammeter connector, allowing user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able tooff-line program the target microcontroller. The Nu-Link2-Me is also a USB mass storage device for drag-and-drop programming of the target microcontroller. Additionally, the Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M032KI, allowing user to use as a mass production programming tool.
