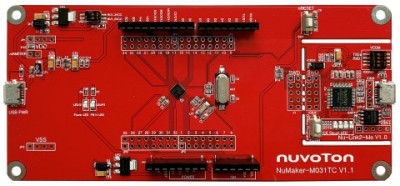

NuMaker-M031TC

The NuMaker-M031TC development board consists of two parts, a M031TC1AE platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M031TC allows users to quickly develop and easily program and debug application.

The NuMaker-M031TC offers M031TC1AE full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M031TC also provides an ammeter connector, allowing user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line program the target microcontroller. Additionally, the Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M031TC, allowing user to use as a mass production programming tool.

Board Features

•NuMicro®  M031TC1AE used as main microcontroller with function downward compatible with:
 -M031EC1AE
 -M031FC1AE
•M031TC1AE full pins extension connectors
•Arduino UNO compatible extension connectors
•Ammeter connector for measuring the microcontroller’s power consumption
•Fixable board power supply
 -External VDD power connector
 -Arduino UNO compatible extension connector Vin
 -USB power connector on M031platform
 -ICE USB connector on Nu-Link2-Me
•On-board Nu-Link2-Me debugger and programmer:
 -Debug through SWD interface
 -On-line /off-line programming
 -Virtual COM port function
