NM-N83G20SA
SmartAmpSeries
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Operating Voltage
2.5~5.135V
Operating Temperature
-40~+85˚C
Description

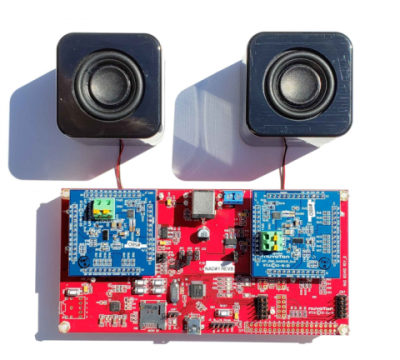

Stereo NAU83G20 EVAL Board with BUF-4203 Speaker
The NM-N83G20SA is the evaluation system for the NAU83G20 device along with Klippel Controlled Sound (KCS) technology and 2x 3W speaker from Bujeon.
Hardware
NAD (Nuvoton Audio Development Board) based on ARM Cortex M4 Processor
2x NAU83G20 Board with Klippel Controlled Sound technology
Software
DB-Lab Software from Klippel
A6 Audio Enhancements
NAU83G10 / NAU83G20 Labiview GUI
Reference Speaker
2x BUF-4203 (Φ42 x 14T, 3W)
Power Supply
Not Included. Please, check the quick start guide for details
** Please, note that the NAU83G20 EVAL board need to be configured specifically for the speaker device under test for a proper operation.
