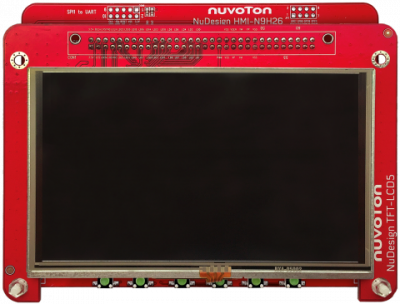

NuMaker-HMI-N9H26
HMI platform embedded with N9H26 MPU
Supplier:
Nuvoton
Certification:
*Due to the NuMaker-emWin-N9H26 not being recommended for new designs (NRND), we suggest considering the recommended model: NuMaker-HMI-N9H26.
NuMaker HMI N9H Series
Nuvoton offers the HMI platform which is embedded with Nuvoton N9H MPU. The N9H26 series with ARM926EJ-S core can operate at up to 240 MHz. It integrated TFT-LCD display controller, 2D graphics accelerator, H.264 and JPEG codec, supporting resolution up to 1024 x 768 pixels in parallel port, and the color depth up to 16.7 million colors ( 24-bit ) LCD screen output to deliver gorgeous display effects. It also offers built-in H.264 video decoder and voice decoder, which can streamline the peripheral circuits of HMI applications with sound playback. In addition, it embedded up to 64 MB DDR SDRAM, along with ample hardware storage and computing space for excellent design flexibility.
NuMaker-HMI-N9H26 Development Board Features
- 32-bit ARM926EJ-S N9H26 SeriesMPU
- CPU Speed up to 240 MHz
- Build-in 64 MB DDRII memory
- USB 2.0 High speed device
- USB 2.0 High speed Host
- 5” ( 800 x 480 ) 24-bit RGB LCD
- H.264 Video decompression
- UART x 1
