NM-N83G10SB
SmartAmpSeries
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Operating Voltage
2.5~5.95V
Operating Temperature
-40~+85˚C
Description

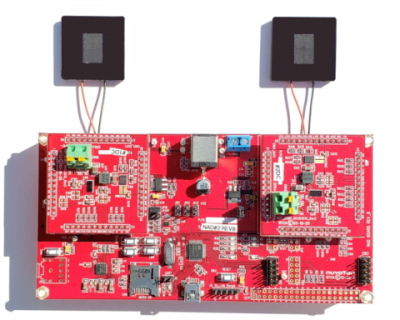

Stereo NAU83G10 EVAL Board with 2x BRS-181300 Speaker
The NM-N83G10SB is the evaluation system for the NAU83G10 device along with Klippel Controlled Sound (KCS) technology and 2x micro speaker from Bujeon.
Hardware
NAD (Nuvoton Audio Development Board) based on ARM Cortex M4 Processor
2x NAU83G10 Boards with Klippel Controlled Sound technology
Software
DB-Lab Software from Klippel
A6 Audio Enhancements
NAU83G10 / NAU83G20 Labiview GUI
Reference Speaker
2x BRS-181300 (8Ω, 18x13x2.3T, FrontFire)
Power Supply
Not Included. Please, check the quick start guide for details
** Please, note that the NAU83G10 EVAL board need to be configured specifically for the speaker device under test for a proper operation.
