NUC029LAN

Introduction

The Nuvoton® NuMicro® NUC029LAN is part of the NuMicro® NUC029 series, which has established itself as a versatile and powerful microcontroller line designed particularly for a wide array of industrial control applications. These microcontrollers combine robust operational characteristics, including impressive immunity and anti-interference capabilities, with a comprehensive set of peripherals to enable versatile solutions in automation and control technologies.

Function & Applications

The NUC029LAN microcontroller provides functionalities vital for the demands of applications including LED control, various industrial control systems, and motor control. Equipped with a multitude of peripherals such as PWM, ADC, UART, SPI, and I²C, the device is capable of addressing the complex needs of these sectors seamlessly. Comprehensive in-system and in-application programming features promote flexibility in software deployment and updates.

Performance Parameters

- Operating Voltage: 2.5V ~ 5.5V
- Temperature Range: -40 ℃ to +85 ℃
- ESD Immunity: Varies by subseries (up to HBM 8 kV for certain models)
- Core: Arm® Cortex®-M0 processor, running up to 50 MHz
- Memory: 64 KB Flash for program memory, with 4 KB SRAM and 4 KB ISP ROM
- Clocks: Internal oscillators and support for external crystal oscillators, satisfying a range of timing requirements
- Analog: 12-bit ADC with up to 8 channels, providing a conversion rate of up to 760 kSPS
- Connectivity: Comprehensive interface options with UART, SPI, I²C, and EBI interfaces
- PWM: Up to an 8-channel, 16-bit resolution capable of capture interrupt support

Package Types, Interface & Pin Configuration

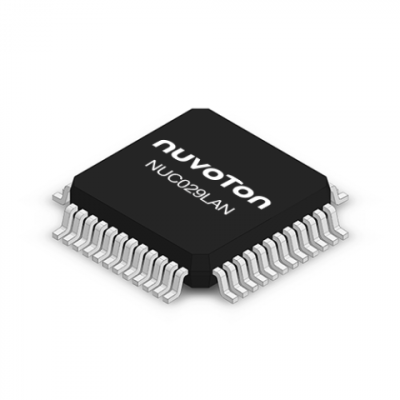

The NUC029LAN is available in an LQFP48 package measuring 7x7mm. This package type offers a compact solution with a harmonious blend of necessary I/O pins and support for a plethora of communication interfaces, ensuring comprehensive connectivity for various application requirements.

Reliability & Lifespan

These microcontrollers are designed for use in demanding industrial settings. They can withstand a wide operating temperature range and feature multiple reset options including Power-on Reset, Brown-out Reset, and Low Voltage Reset. With built-in LDO's for power management and various protection features, these microcontrollers promise a dependable lifespan in their target applications.

Standards & Certifications

While the exact standards and certifications applicable to the NUC029LAN are not detailed in the given text, the device's robust ESD and EFT immunity figures suggest compliance with relevant international standards for electromagnetic compatibility and safety, necessary for industrial electronic devices.

Application Cases & Reference Designs

The NUC029LAN is ideal for managing the intricate aspects of LED control systems, sophisticated industrial automation systems, and precise motor control applications.

This overview encapsulates the vital characteristics and potential of the NuMicro® NUC029LAN microcontroller, aligned with the precise specifications mentioned, to present a thorough view of its abilities and applications.
