W29N04GVSIAA

Introduction:

The W29N04GV is a 4Gb SLC NAND Flash memory device designed by Winbond, offering an industry-standard solution with a focus on lower-density code storage applications. With compatibility as a key design feature, Winbond's SLC NAND Flash products serve as direct drop-in replacements for equivalent devices from other suppliers, providing seamless integration and a superset of features.

Function & Applications:

Winbond's 4Gb SLC NAND Flash memory is available in both 1-bit ECC and 4-bit ECC configurations, offering versatile options to customers for a wide range of applications. These applications include Internet of Things (IoT), Automotive, Networking, Storage, Set-Top-Box, DSL & Cable modems, Digital TV, Mobile phones, Printers, Industrial, and more.

Performance Parameters:

The W29N04GV operates with a voltage range of 2.7V to 3.6V and supports a 40MHz frequency. It offers a uniform 2KB+64B page size, with a bus width of x8, a random read time of 25us, a page program time of 250us (typical), and a block erase time of 2ms (typical). The device also supports OTP (One-Time Programmable) memory areas for added functionality.

Package Types:

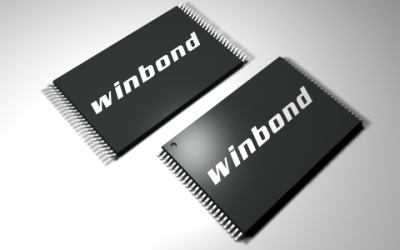

The W29N04GV is available in two package options: TSOP48 and BGA63.

Interface and Pin Configuration:

Winbond's W29N04GV SLC NAND Flash memory features the same command set, interface, and package types as similar products from other suppliers, ensuring compatibility and easy integration with existing designs.

Reliability & Lifespan:

Winbond SLC NAND Flash products are designed with high-quality materials, ensuring reliable operation and a long lifespan. The device is available in multiple temperature ranges, including -40°C to 85°C, and -40°C to 105°C, providing flexibility and adaptability for a variety of environments.

Standards and Certifications:

As an industry-standard solution, the W29N04GV adheres to the norms and requirements of the applications it serves, ensuring compliance with relevant certifications and regulatory standards.

Application Cases and Reference Designs:

Winbond's W29N04GV SLC NAND Flash memory is utilized in numerous applications, providing high-density code memory for automotive solutions, secure data storage for IoT devices, and fast data transfer speeds for networking devices, to name a few. Reference designs are available from Winbond to assist customers with integration and design optimization, ensuring efficient and effective use of the product in various applications.
